Welcome to the dynamic and intricate world of automotive electrical systems. In this era, where automotive technology is advancing at an unprecedented pace, the electrical systems in modern vehicles have become more complex than ever before. These systems are not just supplementary components; they are the lifeblood of a vehicle’s functionality, crucial for everything from igniting the engine to managing the most advanced safety mechanisms. Understanding and troubleshooting these systems, therefore, is not just a skill, but an art that requires a methodical approach, deep knowledge of automotive electronics, and the mastery of specialized diagnostic tools. This guide is crafted to offer automotive professionals and enthusiasts a deep dive into the art and science of diagnosing electrical issues in vehicles, illuminating the path to mastery in this challenging yet rewarding field.
As we embark on this journey, it’s essential to recognize the significance of harnessing manufacturer-specific resources. In the detailed realm of automotive electrical diagnostics, the effective use of manufacturer specifications, manuals, diagnostic procedures, diagrams, and state-of-the-art scan tools—constantly updated with the latest data—cannot be overstated. These resources serve as the foundational pillars providing the critical information and step-by-step guidance necessary for precise and impactful troubleshooting. Join us as we navigate through the complexities of modern vehicle electrical systems, equipping you with the knowledge and skills needed to excel in this ever-evolving domain.
Understanding Automotive Electrical Systems
Before diving into diagnostics, it’s essential to have a foundational understanding of automotive electrical systems. A typical system includes the battery, alternator, starter, and a network of wires, fuses, relays, and connectors. Additionally, modern vehicles incorporate sophisticated components like electronic control units (ECUs), modules, sensors, and advanced infotainment systems.
The Diagnostic Process
- Initial Assessment Begin by gathering information from the vehicle owner about the nature of the electrical problem. Key details include when the issue occurs, any associated symptoms, and any recent vehicle repairs or modifications.
- Visual Inspection A thorough visual inspection can reveal obvious issues such as corroded battery terminals, blown fuses, or damaged wiring. Pay special attention to the battery’s condition, checking for proper mounting and clean, tight connections.
- Battery Testing The battery is the cornerstone of the electrical system. Use a multimeter to check the battery voltage. A healthy battery should show around 12.6 volts when the engine is off. Additionally, perform a load test to assess the battery’s ability to maintain voltage under load.
- Checking the Charging System The alternator, which charges the battery and powers the electrical system while the engine runs, must be tested next. Measure the voltage at the battery terminals with the engine running; it should be between 13.5 and 14.5 volts. An alternator delivering less than 13 volts or more than 15 volts indicates a problem.
- Starter System Test A non-starting engine can be a symptom of a faulty starter system. Check the starter circuit, including the starter motor, relay, and ignition switch. A starter draw test can determine if the starter motor is drawing an excessive current.
- Using Scan Tools For more intricate problems, particularly those involving the ECU or other electronic components, a scan tool is indispensable. The scan tool retrieves diagnostic trouble codes (DTCs) from the vehicle’s onboard computer, providing clues to potential issues.
- Circuit Testing For issues like non-functioning lights or erratic instrument panel behavior, circuit testing is crucial. Use a wiring diagram to identify the circuit involved, and then test for continuity, voltage, and ground. This process often reveals issues like short circuits, open circuits, or poor grounds.
- Advanced Diagnostics Some electrical issues may require more advanced diagnostic techniques. These can include oscilloscope testing to visualize electrical signals, or specialized testing of components like sensors, actuators, and control modules.
Expanded Insight into Electrical Diagnostics
Continuing from our stepped guide on diagnosing electrical problems in vehicles, let’s delve deeper into the intricacies of steps 6, 7, and 8 of the diagnostic process. These steps are pivotal in addressing complex electrical issues that standard procedures may not fully resolve.
Using Scan Tools and Interpreting Diagnostic Trouble Codes (Step 6)
- Fundamentals of Scan Tools: Scan tools range from basic code readers to advanced diagnostic scanners. They interface with a vehicle’s onboard diagnostics (OBD) system, accessing the electronic control unit (ECU) which monitors various sensors and actuators throughout the vehicle.
- Retrieving and Analyzing Diagnostic Trouble Codes (DTCs): When the ECU detects an anomaly, it logs a DTC and sometimes triggers the check engine light. Each DTC consists of an alphanumeric code that identifies a specific issue. For instance, a code beginning with ‘P’ refers to a powertrain issue.

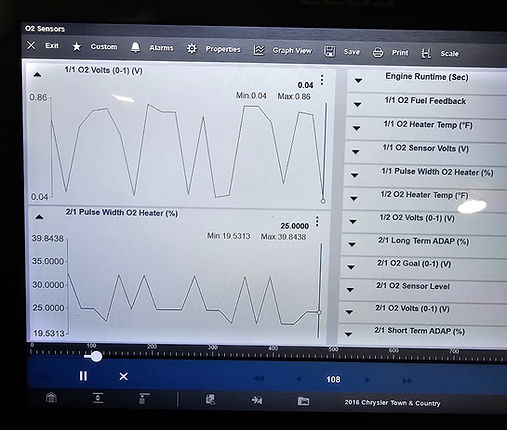

- Beyond Code Reading: Advanced scan tools offer functionalities beyond just reading codes. They can monitor real-time data, conduct actuator tests, program new components, and even provide guided diagnostics. These capabilities are crucial for pinpointing issues in complex systems like fuel injection, emissions control, and advanced driver-assistance systems (ADAS).
- Interpreting Data: The key to effective use of scan tools lies in interpreting the data correctly. For instance, a code indicating a sensor fault might not necessarily mean the sensor is defective; it could be a wiring or connectivity issue.
Circuit Testing and Electrical Troubleshooting (Step 7)
- Circuit Analysis: Understanding wiring diagrams is crucial. These diagrams provide a road map of the electrical system, showing the path of current flow and the relationship between different components.
- Tools for Circuit Testing: Essential tools include a digital multimeter for measuring voltage, resistance, and current, and a test light for checking power availability in a circuit.
- Voltage Drop Testing: This is a critical technique for finding high-resistance problems in a circuit, which can cause components to underperform. By measuring voltage drop across different points in a circuit, technicians can locate resistance issues that might not be apparent through standard testing.
- Continuity and Ground Testing: Ensuring a circuit has good continuity and a solid ground is vital for proper operation. Breaks in the circuit or poor grounding can lead to intermittent or complete failure of electrical components.
Advanced Diagnostics: Oscilloscope Use and Control Module Testing (Step 8)
- Oscilloscope in Automotive Diagnostics: An oscilloscope provides a visual representation of electrical signals in a circuit. It’s invaluable for diagnosing issues like glitches in sensor outputs, pulse irregularities in actuators, or communication issues in data buses.
- Analyzing Waveforms: Understanding how to read and interpret waveforms is a skill that allows technicians to diagnose issues beyond the scope of standard scan tools. For example, a fluctuating waveform from a crankshaft position sensor might indicate a failing sensor or a mechanical issue with the crankshaft itself.
- Control Module Testing: Modern vehicles are equipped with multiple control modules governing various systems. Diagnosing these requires not just code reading but also understanding the interaction between different modules. Issues like communication faults between modules can lead to complex and intermittent problems.
- Software and Calibration Updates: Sometimes, electrical issues stem from outdated software or calibration in the vehicle’s control modules. Keeping these updated as per manufacturer guidelines is an essential part of modern vehicle maintenance.
Expanded Insight 2: Electric Boogaloo or “Leveraging Manufacturer Resources and Advanced Tools”
In the realm of automotive electrical diagnostics, the utilization of manufacturer specifications, manuals, diagnostic procedures, manufacturer diagrams, and advanced scan tools constantly updated with new data is critical. These resources provide the detailed information and guidance necessary for precise and effective troubleshooting. Here we dive into how these resources are essential in diagnosing and resolving electrical issues in modern vehicles.
Using Manufacturer Specifications and Manuals
- Importance of Manufacturer Specifications: Manufacturer specifications are the benchmarks for all diagnostic procedures. These include details on electrical component ratings, wiring specifications, and recommended operational values. Adhering to these specifications ensures accuracy in diagnostics and repairs.
- Manuals for In-Depth Understanding: Manufacturer manuals offer comprehensive information on vehicle systems. These manuals often include troubleshooting guides, repair instructions, and safety information, making them indispensable for technicians.
Application of Diagnostic Procedures and Manufacturer Diagrams

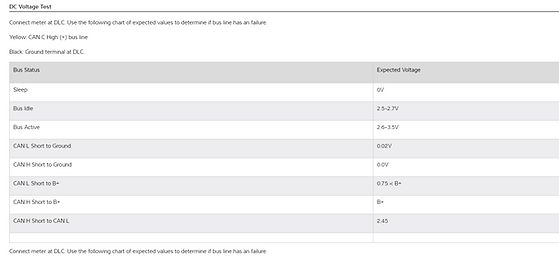

- Diagnostic Procedures: Manufacturers provide specific diagnostic procedures for their vehicles. These procedures are designed to systematically address and isolate problems in the electrical system. Following these ensures that technicians are aligning their methods with the vehicle’s design and engineering.

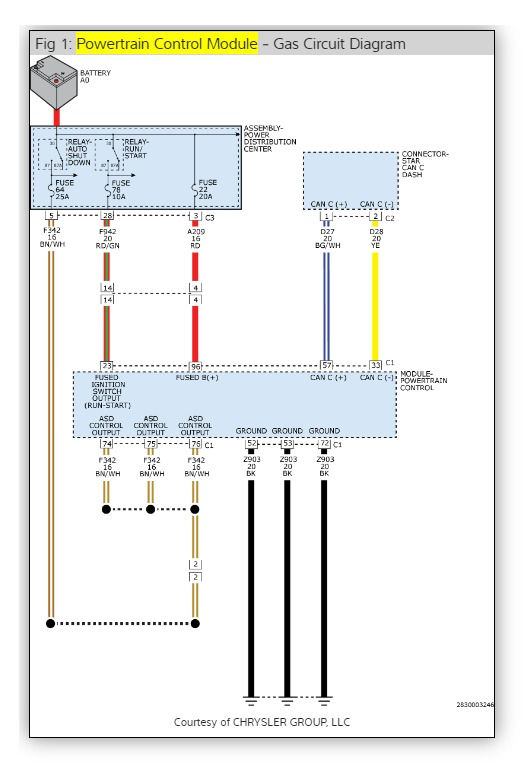

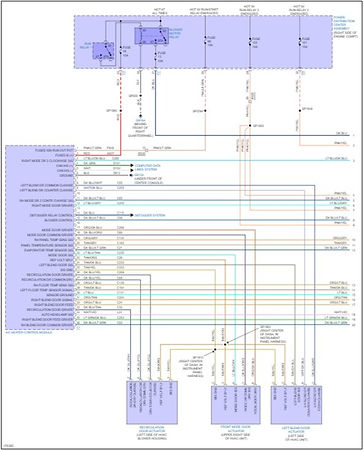

- Utilizing Manufacturer Diagrams: Electrical diagrams provided by manufacturers are crucial for understanding the layout and interaction of various electrical components. These diagrams assist in tracing circuits, identifying connections, and pinpointing potential fault areas.
Advanced Scan Tools Updated with New Data

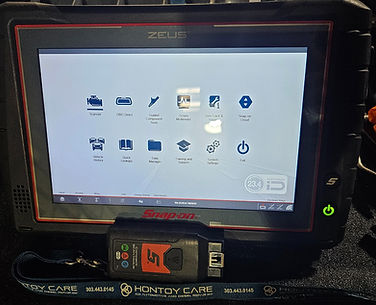

- Keeping Up with Technology: As vehicle technology evolves, so do the diagnostic tools. Advanced scan tools that are regularly updated with new data are essential to interface effectively with newer vehicle models and their sophisticated systems.
- Capabilities of Advanced Scan Tools: Modern scan tools go beyond basic code reading. They can provide real-time data streaming, program control modules, and offer guided diagnostics based on the latest manufacturer data. This capability is crucial for diagnosing complex systems like hybrid and electric vehicles, ADAS, and integrated infotainment systems.
- Manufacturer-Specific Software: Some advanced scan tools come equipped with manufacturer-specific software, which can be incredibly beneficial. This software offers more in-depth diagnostics, coding, and programming capabilities tailored to specific vehicle models.
Final Thoughts on Modern Vehicle Electrical Diagnostics
Integrating Foundational Knowledge with Advanced Techniques
Diagnosing electrical problems in modern vehicles stands as a complex yet deeply rewarding endeavor. It demands a harmonious blend of foundational electrical knowledge, meticulous attention to detail, and proficient use of advanced diagnostic tools. As the automotive landscape continues to evolve with increasing technological sophistication, automotive professionals and enthusiasts alike must adopt a structured and methodical approach. This approach is essential for accurately pinpointing and resolving electrical issues, which is vital for ensuring both the reliability and safety of vehicles.
The Imperative of Continuous Learning and Adherence to Standards
This comprehensive guide underscores the importance of continually updating one’s knowledge and skills in the face of rapidly advancing automotive technology. The field of electrical diagnostics in contemporary vehicles requires not only a grasp of traditional techniques but also an in-depth understanding of cutting-edge technologies and methods. Technicians aspiring to excel in this field must remain committed to lifelong learning, gaining hands-on experience, and staying abreast of the latest advancements and updates.
Emphasizing Safety and Manufacturer Guidelines
Safety remains a paramount concern in all automotive repair scenarios. It is crucial for technicians to rigorously adhere to the safety standards and manufacturer guidelines and specifications during the diagnostic process. This adherence is not just about following procedures; it’s about ensuring the highest standards of repair and maintenance, thereby safeguarding both the technician and the vehicle.
Utilizing Manufacturer Resources and Advanced Diagnostic Tools
The automotive industry’s dynamic nature necessitates staying updated with manufacturer specifications, manuals, diagnostic procedures, and wiring diagrams. These resources provide invaluable insights into the specific requirements and intricacies of various vehicle models. Moreover, leveraging advanced scan tools, regularly updated with the latest data, enables technicians to keep pace with new vehicle technologies and systems. Integrating these tools and resources into the diagnostic process enhances the accuracy and efficiency of diagnosing and resolving intricate electrical issues.
In Conclusion
Mastering the art of electrical diagnostics in today’s sophisticated vehicles is an ongoing journey of education and skill enhancement. It involves not only understanding and applying complex technical knowledge but also embracing the continuous evolution of automotive technologies. By integrating foundational principles with advanced diagnostics, prioritizing ongoing education, and strictly adhering to manufacturer guidelines, automotive professionals can achieve excellence in diagnosing and resolving electrical challenges, thereby contributing to the overarching goal of vehicle reliability, performance, and safety.
